Seven pulse modes
Seven EMS patterns and 15 intensity levels provide adjustable stimulation.
Supplied product imageJMZ-723 · EMS BELT FOR OEM / ODM PROJECTS

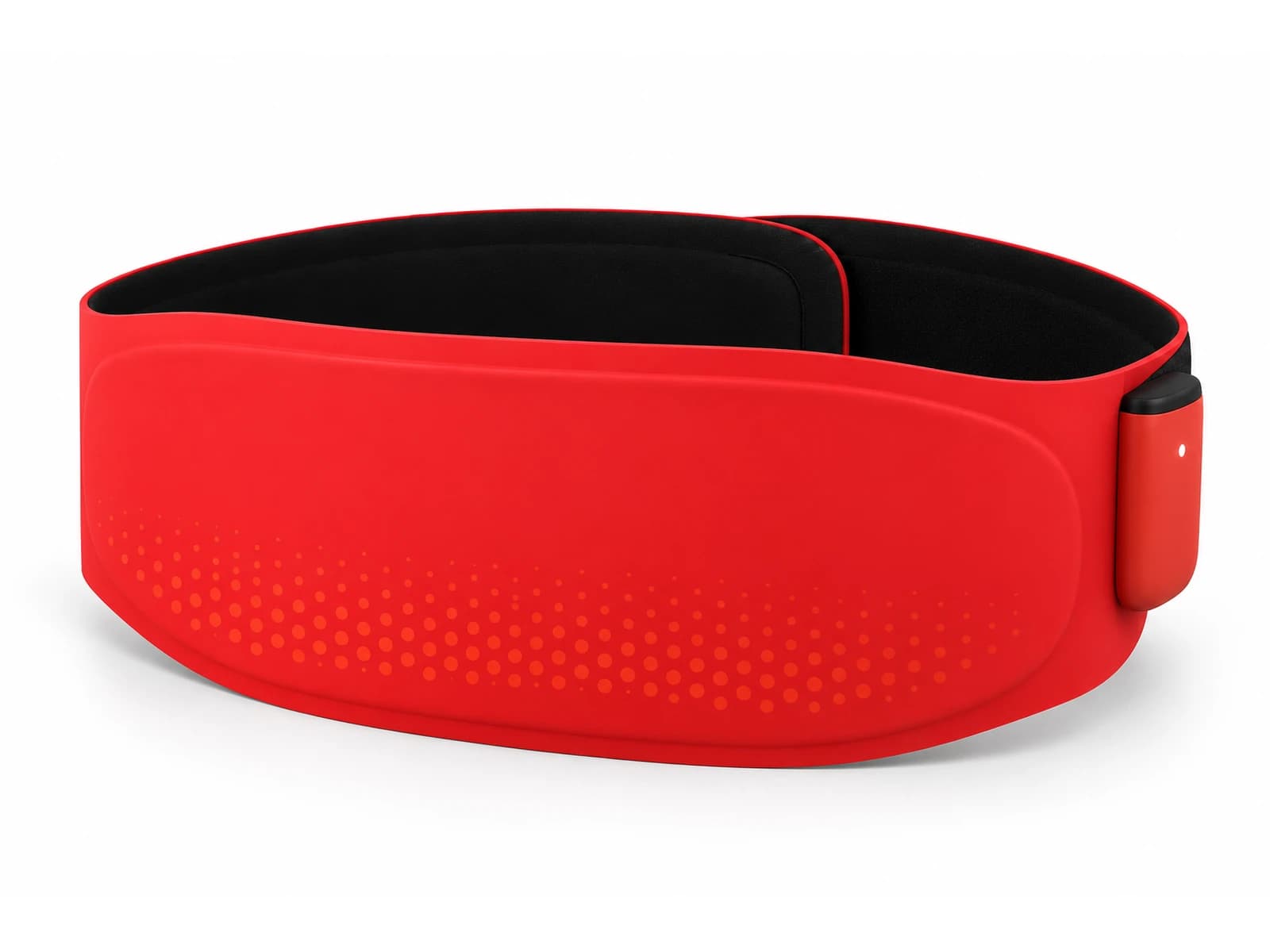

Rechargeable EMS & Heated Waist Belt
An adjustable EMS waist belt with seven pulse modes, 15 intensity levels, two warming settings and a handheld remote. A detachable main unit and supplied arm and extension straps support flexible daily use.
7 EMS Modes15 Intensity Levels2 Heat SettingsRemote Control
Volume price range
$19.80–23.00 / pc
MOQ 50 pcs
50–499 pcs
$23.00 / pc
500–2,999 pcs
$21.50 / pc
3,000–4,999 pcs
$20.50 / pc
5,000+ pcs
$19.80 / pc
Sample: $28.00Volume prices are confirmed with the final quotation.
Lead time: Samples in 7 days after design approval; 50 pcs in 15 days, 500 pcs in 20 days and 3,000 pcs in 35 days. Special configurations, tooling, peak periods and other exceptions are discussed separately.
EMS & warmth
Adjustable Waist Comfort with Remote Control
Choose a pulse pattern, adjust the intensity gradually and add warmth to suit your daily routine.
Two warming settings
Select warmth from the remote. The supplied specification lists a maximum temperature of 50°C.
Rechargeable system

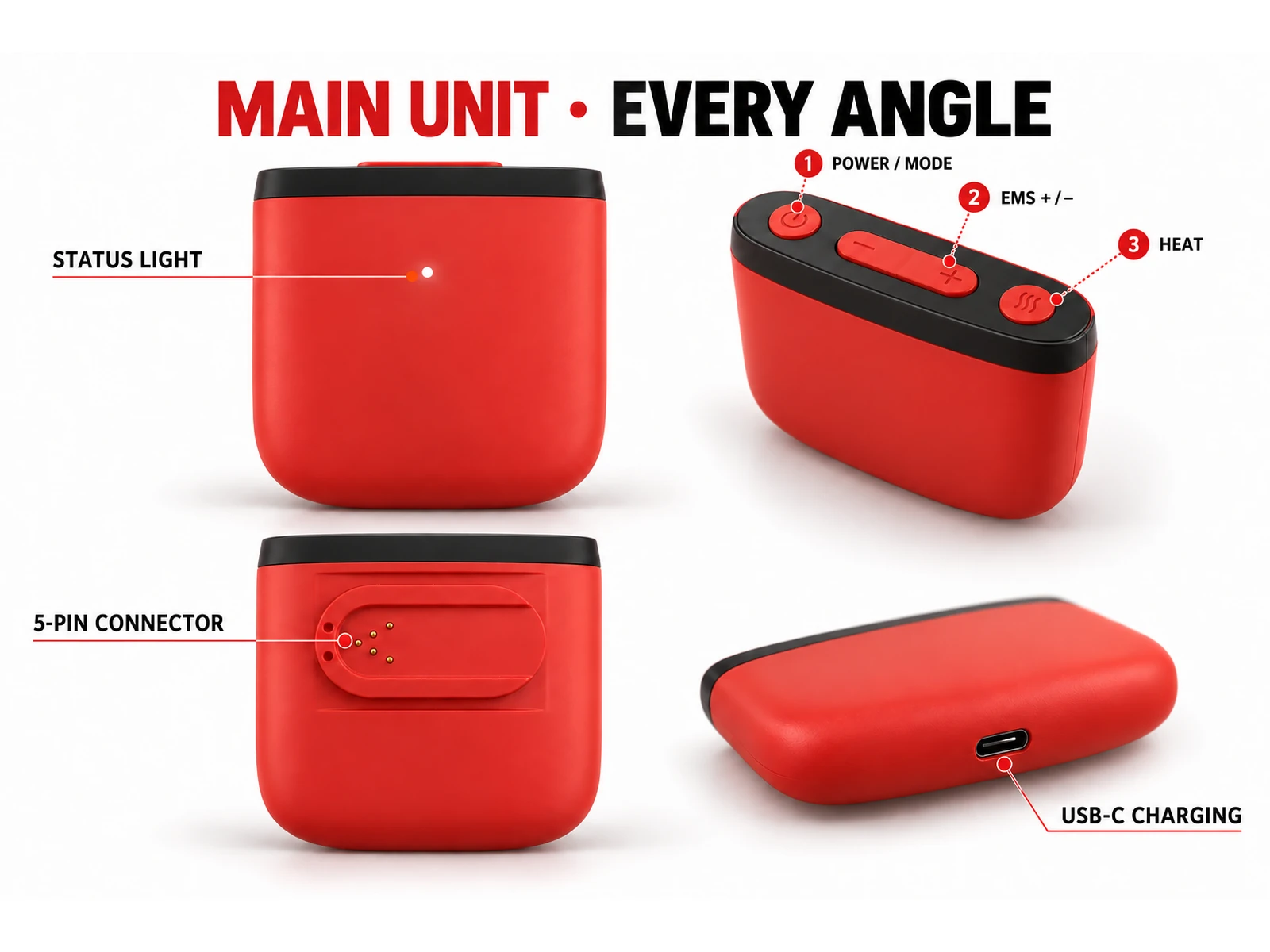

A 2000mAh main unit and 300mAh remote provide rechargeable operation.

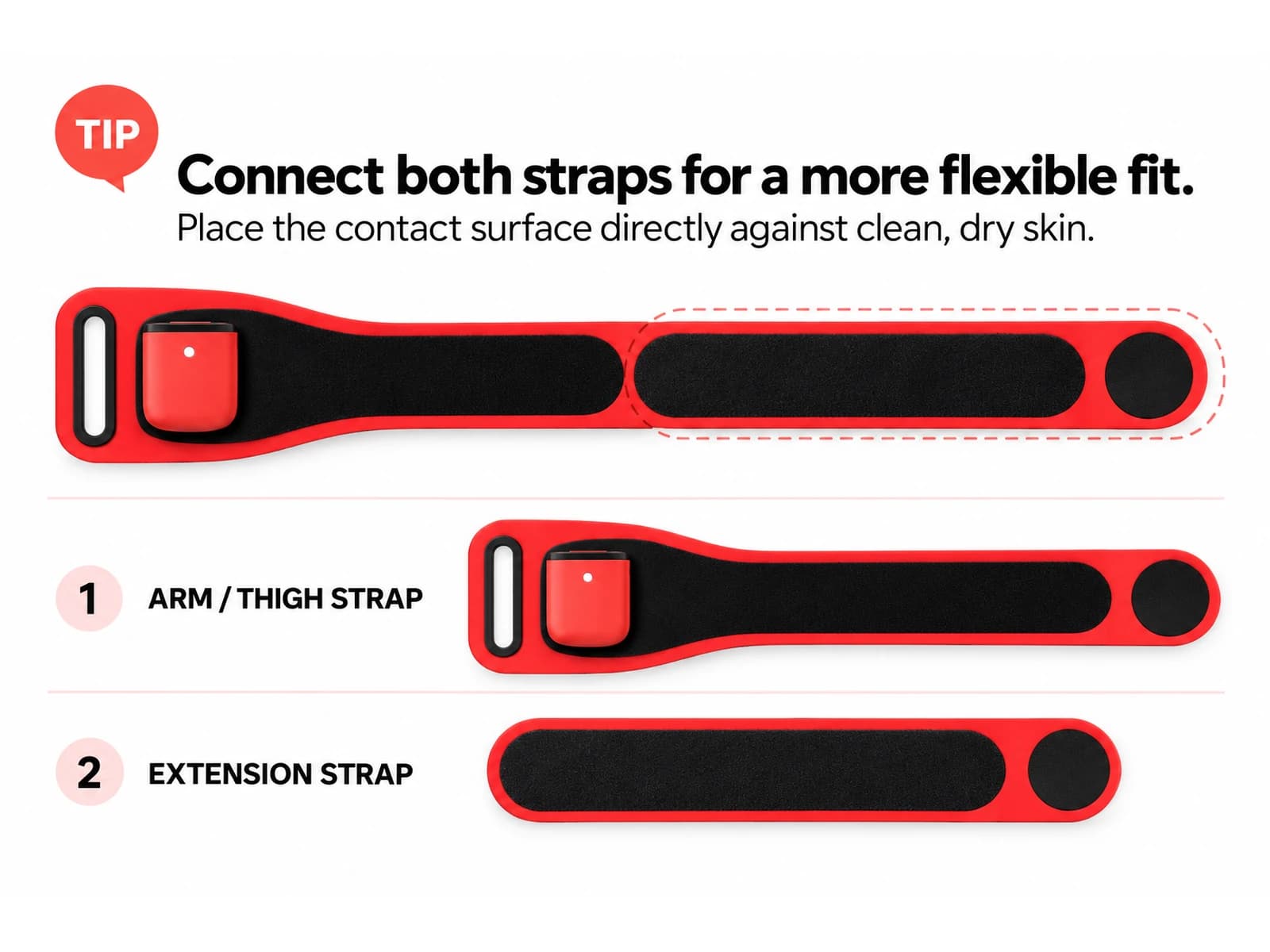

Flexible straps
The set includes a waist belt, extension strap and smaller arm strap.
Data transparency
Product Specifications
Dimensions and operating details follow the supplied specification sheet. Model JMZ-723 is retained as confirmed by the manufacturer. Exact quantity breakpoints and final commercial terms are confirmed in the quotation.
| Item | Value | Status |
|---|---|---|
| Model | JMZ-723 | Confirmed |
| Functions | EMS / heating | Confirmed |
| Input | DC 5 V / 2 A | Confirmed |
| Battery | Main unit 2000mAh / remote 300mAh | Confirmed |
| Material | Lycra | Confirmed |
| EMS Modes / Intensity | 7 modes / 15 levels | Confirmed |
| Heating | 2 warming settings; maximum 50°C | Confirmed |

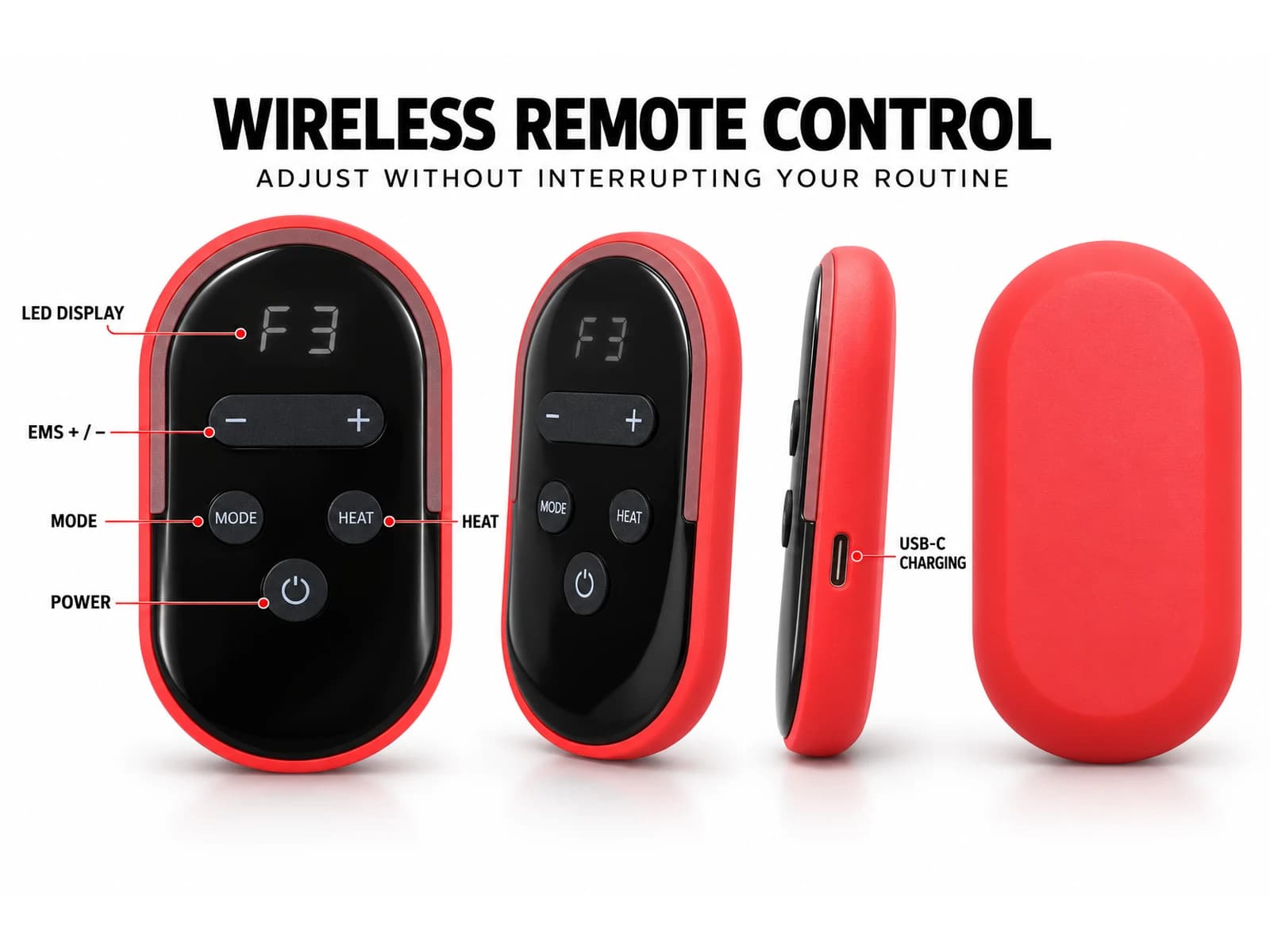

| Control | Handheld remote control | Confirmed |
| Session | 25 minutes with automatic end | Confirmed |

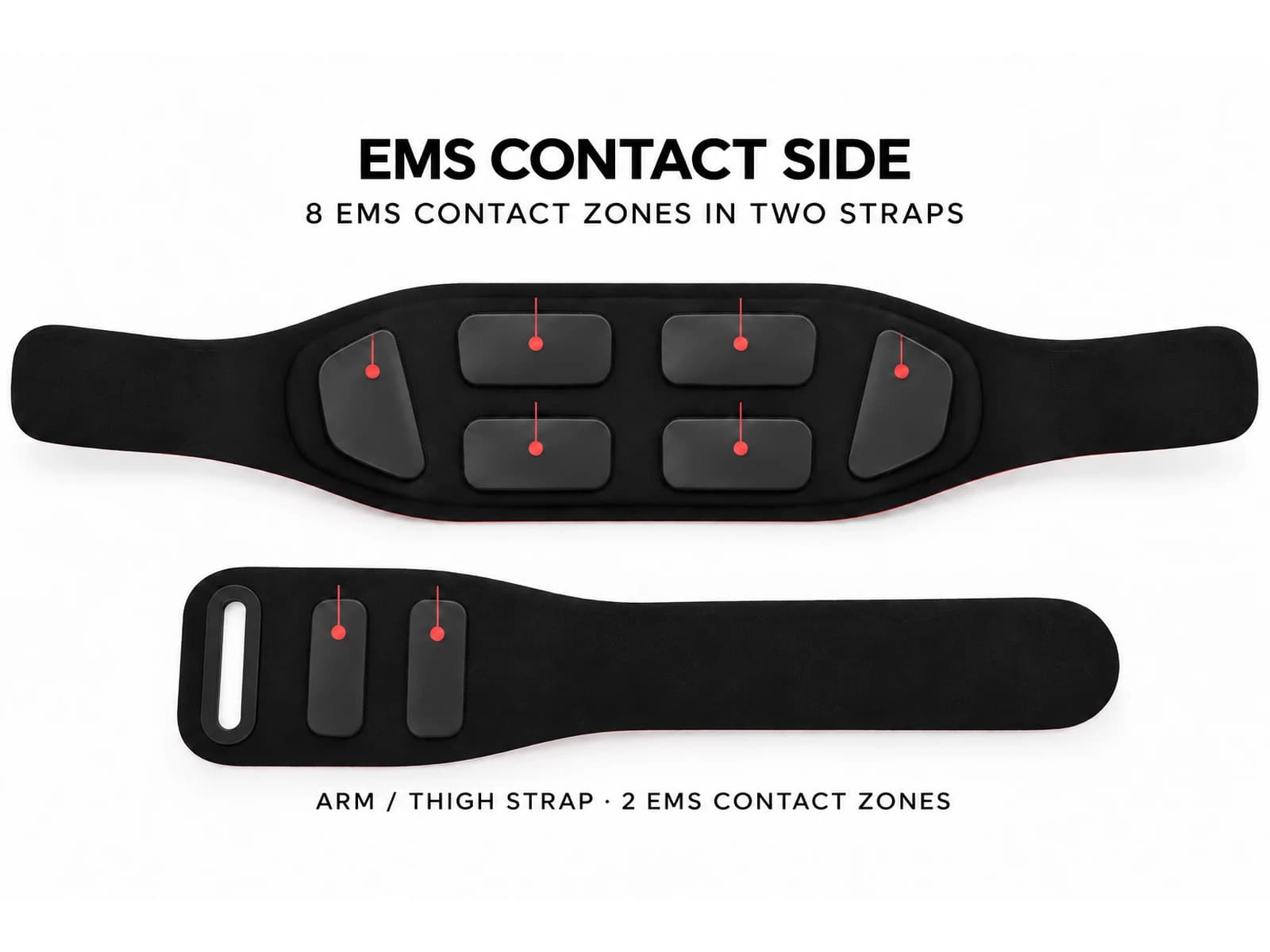

| EMS Output | Maximum 4.1mA | Confirmed |
| Waist Belt | 930 × 135 mm | Confirmed |
| Arm Strap | 445 × 120 mm | Confirmed |
| Extension Strap | 350 × 75 mm | Confirmed |
| Product Weight | Approx. 290 g; weighing scope not specified | Confirmed |
| Charging Time | Main unit approx. 120 min / remote approx. 60 min | Confirmed |

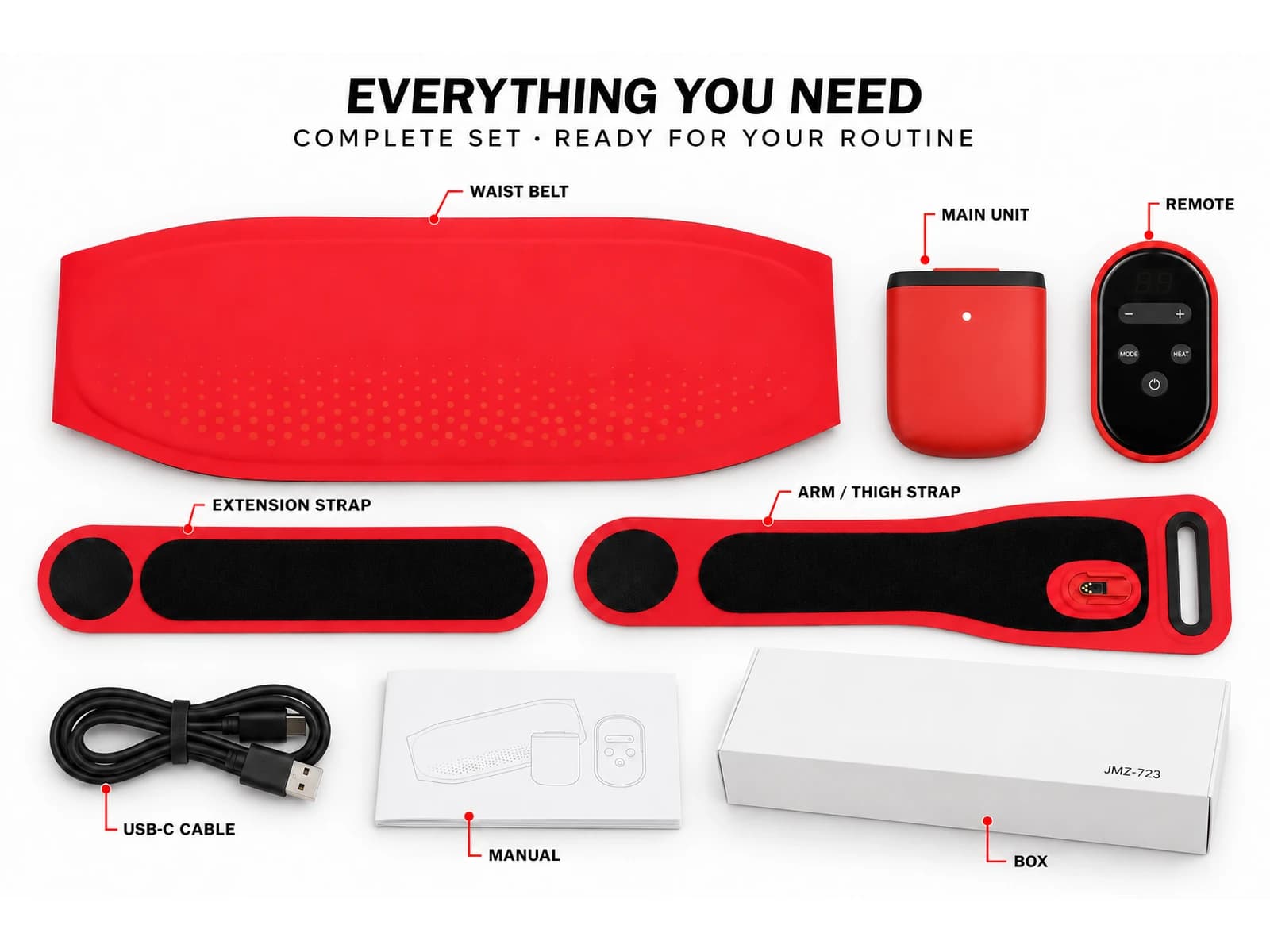

| Supplied Set | Main controller, waist belt, extension strap, arm strap, remote, charging cable and user manual | Confirmed |
OEM / ODM options
Prepare JMZ-723 for Your Market
Logo, color and retail packaging can be customized for qualified orders. Standard customization minimums are shown below; product structure, tooling, lead time and commercial terms are confirmed with the quotation.
Custom Logo
MOQ 500 pcs
Custom Color
MOQ 500 pcs per color
Color Box
MOQ 500 pcs
Corrugated Box
MOQ 300 pcs
